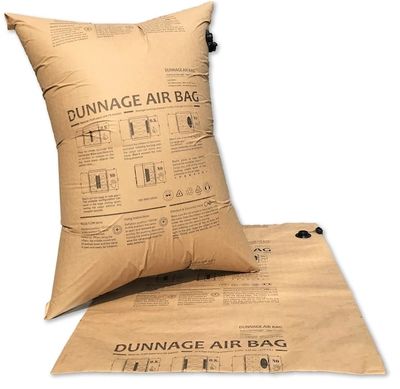

Kraft Paper Dunnage Air Bags
Description
- Paper Dunnage Bags have excellent stability
- Easy To Use
- Quick Inflation/Deflation
- Re-Usable
- Available Width: 60cm,90cm,120cm/24’’,36’’,48’’
- Available Lenth: 90cm,120cm,150cm,180cm,210cm/36’’,48’’,60’’,71’’,83’’
- Materials: Polyethylene (inner layer), Kraft Paper(outer layer)
Level 0
- Serviceable Range: Light duty mainly used in truck shipments
- Advantage: More economical
- Max. Filling Pressure: 2-3PSI
- Burst Pressure : 7PSI
Level 1
- Serviceable Range: Truck/container – Vertical or Horizontal Voids
- Advantage: Most preferred types
- Max. Filling Pressure: 3PSI
- Burst Pressure : 7PSI
Level 2
- Serviceable Range: All shipping containers – either piggyback (container or trailer on the Railroad) or for ocean transport
- Advantage: In rail cars they can be used for filling lengthwise voids in loads up to 75,000 lbs (34.000 kg )
- Max. Filling Pressure: 5PSI
- Burst Pressure : 17PSI
Level 3-4
- Serviceable Range: Mainly used in rail cars with load weights from 75.000 LBS (34.000 kg) to 205.000 LBS (93.000 kg). They are used for almost all the products, including paper rolls, plywood and bricks.
- Advantage: Suitable for heavy cargo
- Max. Filling Pressure: 8PSI
- Burst Pressure : 21PSI
